Compact & Complete
Seegene STARlet-AIOS™
The only compact and complete automation system
maximizes your walk-away time and minimizes
the hands-on time while compatible with all Seegene’s
high multiplex syndromic-based tests to lead you
to the next level of molecular diagnostic testing.
Detects and diagnoses the exact cause of symptoms at once with Seegene STARlet-AIOS™
Even if the same symptoms are shown, the causative pathogens can be various
Seegene’s syndromic test is able to pinpoint the infected one among all pathogens causing similar symptoms.
All Seegene’s assays are compatible on full automation system - Seegene STARlet-AIOS™ Over 30 syndromic assays
Gastrointestinal infection
Hospital-acquired infection
Human papillomavirus infection
Sexually transmitted infection
Key feature
Accessibility
All Seegene’s syndromic assays are available in a AIOS™ system
High compatibility
Application of all Seegene’s assays and extraction kits
Test expandability
Application of Seegene’s newly developed products
Affordable
Adoption of a full automation system with a low budget
Cost-efficient
More economical than purchasing other automated systems
Field upgrade available

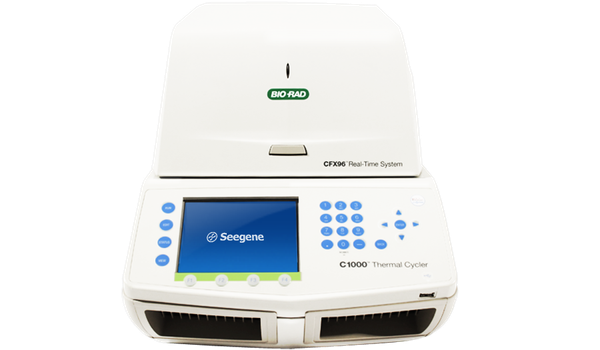

Field upgrade with user’s Seegene STARlet & CFX96s
Simple-to-use
Easy operation & maintenance
Fully automated workflow (Sample-in, Result-out)
Automation process from extraction to data analysis
Reduced hands-on time
Minimized contamination and human error
Space-efficient
Optimized for all hospitals & C-labs
Workflow in limited space
As many as 3 units of AIOS™ can be placed in the same space
where a single unit of other system is placed
Compact size
Modular integration of stand-alone molecular testing instruments
(1,500 X 800 X 1,780 mm)
At least 30~50% less space than the conventional TTA* System (*Task Targeted Automation)

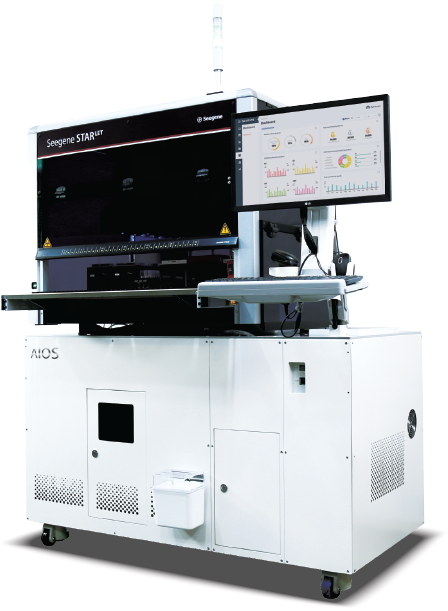

Seegene STARlet-AIOS™
Seegene STARlet-AIOS™
Hardware
Dimensions
1,500 x 800 x 1,780 mm (W x D x H)
Power Supply
· Operating voltage : 100-240 VAC
· Operating frequency : 50/60Hz
· Power consumption: 2,900 W
Environmental Requirements(Operating)
· Ambient room temperature : 15~30°C
· Relative humidity : 15~80% (no condensation)
· Altitude : <2000m
Software
Operation
AIOS™ Controller, SG Launcher,
SG Viewer
Performance Specifications
Sample loading type
Batch type
Time to first result
<5.6h
Maximum number of tests per run
188 Tests
(4 Controls needed to be added)
Maximum number of
samples per batch
· Maximum 94 Samples / 1~2 Panel
· Maximum 46 Samples / 3~4 Panel
Maximum throughput
(7.5hrs / 24hrs)
188 / 752
(ex_ Allplex™ SARS-CoV-2/FluA/FluB/RSV Assay)
Maximum throughput
(8.5hrs / 24hrs)*
376 / 1316
*One extraction for two MDx
(ex_ Allplex™ Respiratory Panel 1, Allplex™ Respiratory Panel 2)
Ordering information
Product
Seegene STARlet-AIOS™
Automated extraction systems

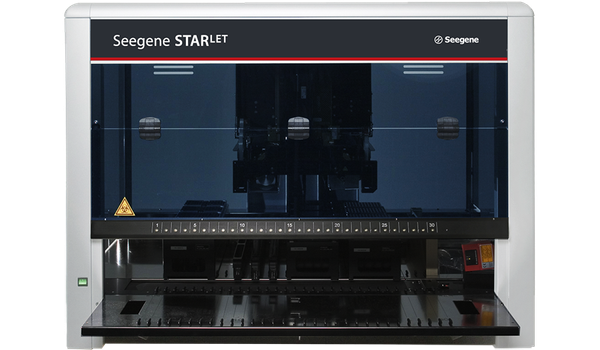

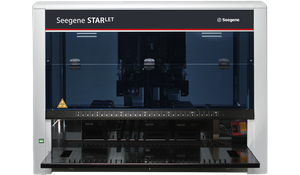

Seegene STARlet
